Solid-state batteries are the “holy grail” of energy storage, promising higher energy densities, faster charging, and improved safety compared to traditional lithium-ion batteries. However, the move from liquid to solid electrolytes changes the electrical profile of the battery, placing new demands on the Battery Management System (BMS). For the switches and connectors within these next-gen systems, silver-based contact rivets must meet a new set of technical requirements.
Higher Voltage and Current Densities
Solid-state batteries often operate at higher voltages and can deliver significantly higher peak currents. The BMS must manage these loads with extreme precision. The internal relays and disconnects require contact materials with exceptional thermal conductivity and low contact resistance. Silver Tin Oxide (AgSnO2), particularly grades with high oxide content (12%+), is essential for handling the rapid inrush currents without welding or excessive surface degradation.
Reliability in Precision Signal Monitoring
A BMS must monitor individual cell voltages with millivolt accuracy. At the signal level, the contacts must be free of any insulating films or oxides that could introduce measurement errors. For these precision signal paths, gold-plated AgNi rivets or Silver Palladium (AgPd) alloys are preferred. Their superior chemical stability ensures that the BMS receives clean, accurate data, which is critical for maintaining the health and safety of the solid-state battery pack.
Thermal Management in Compact BMS Units

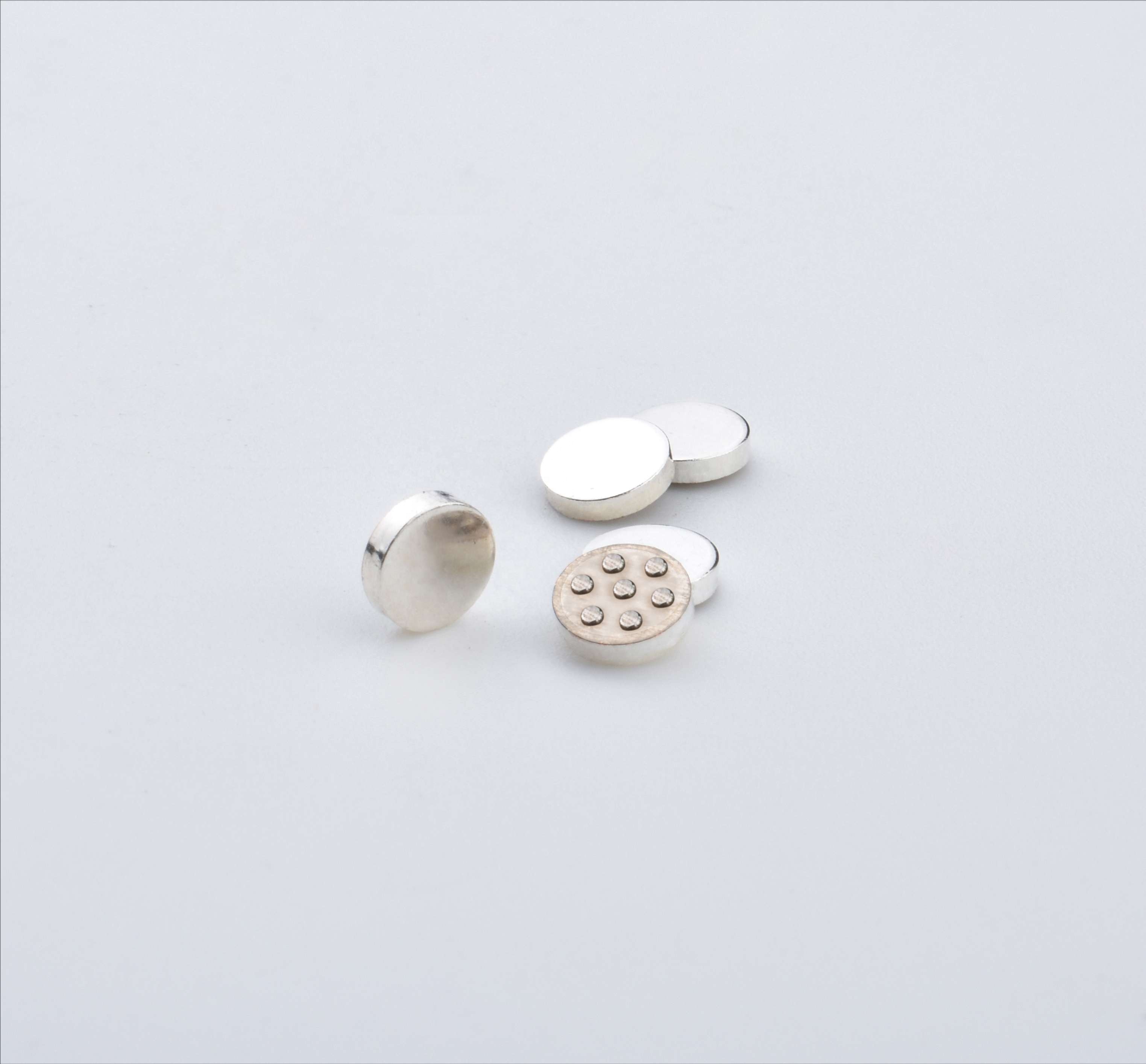

As battery energy density increases, the space available for the BMS shrinks. Managing the heat generated by the switching components becomes a primary design constraint. Using bimetal rivets with oxygen-free copper shanks allows for efficient heat transfer from the silver contact interface to the PCB or busbar. At WEUP, we use advanced metallurgical bonding to ensure a zero-void interface, maximizing the thermal dissipation capacity of the contact assembly.
Meeting the Challenges of 2026 and Beyond
The solid-state battery market is evolving rapidly. By 2026, we expect to see more widespread deployment in high-performance EVs and grid storage. Our R&D team is continuously testing and refining our silver alloy compositions to stay ahead of the curve. We use SEM and EDX analysis to study the behavior of our materials under the unique load profiles of solid-state systems, ensuring that our customers have the most reliable contact solutions available.
Conclusion
Solid-state batteries are the future, and a reliable BMS is the key to unlocking their potential. By prioritizing high-performance contact materials and precision rivet design, engineers can build management systems that are as advanced as the batteries they control. Whether you need AgSnO2 for power switching or AgPd for signal integrity, WEUP has the expertise to help. Contact us today to discuss your solid-state battery BMS project and learn how our advanced contact solutions can power your innovation.
